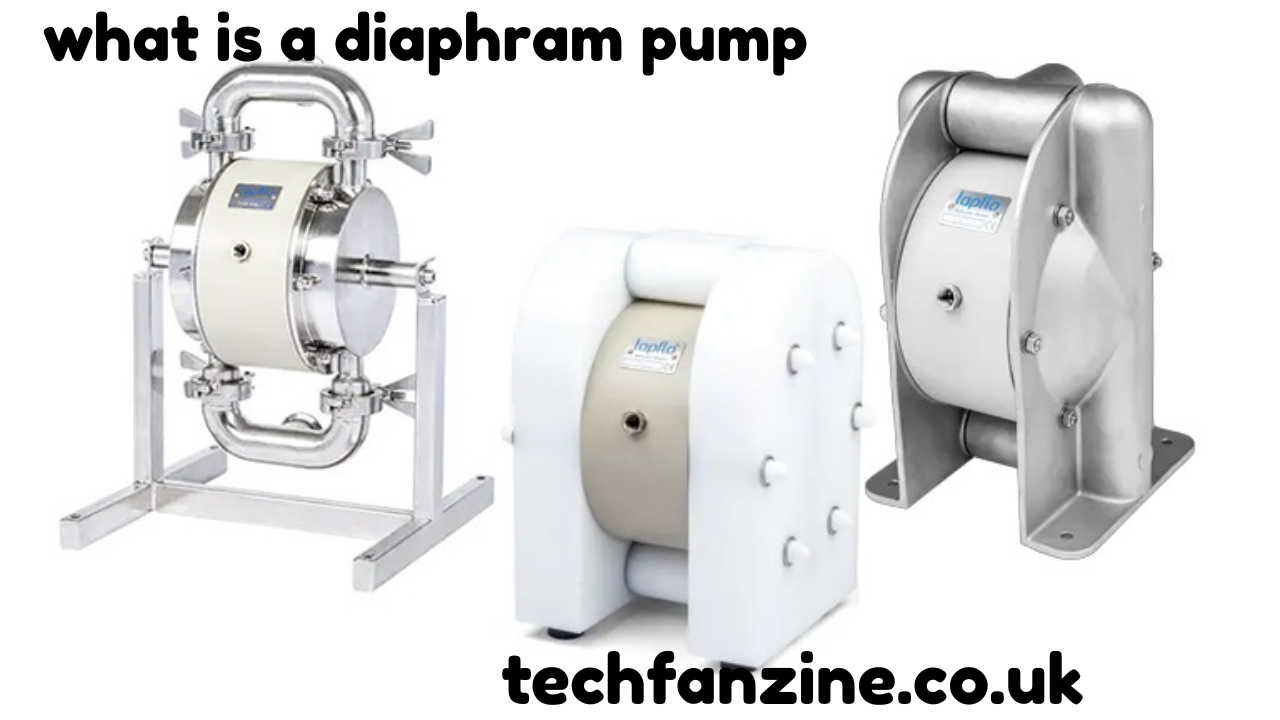

A diaphragm pump is a unique type of positive displacement pump that uses a combination of the reciprocating action of a diaphragm and suitable valves to move fluids. It is widely used in industries ranging from chemical processing to wastewater treatment due to its ability to handle a wide variety of liquids, including corrosive, viscous, and abrasive fluids. In this article, we will explore in detail what is a diaphragm pump, how it works, its types, advantages, and applications.

Understanding What is a Diaphragm Pump

At its core, what is a diaphragm pump can be understood as a pump that moves fluids by the rhythmic flexing of a diaphragm. The diaphragm is typically made of rubber, thermoplastic, or Teflon, and it acts as a barrier between the fluid being pumped and the mechanical components of the pump. The reciprocating motion of the diaphragm creates a vacuum that draws fluid into the pump chamber and then pushes it out through the outlet.

Unlike centrifugal pumps, diaphragm pumps do not rely on impellers. This makes them highly versatile and capable of handling fluids that contain solids or are highly viscous. Understanding what is a diaphragm pump helps industries choose the right type of pump for applications where conventional pumps may fail.

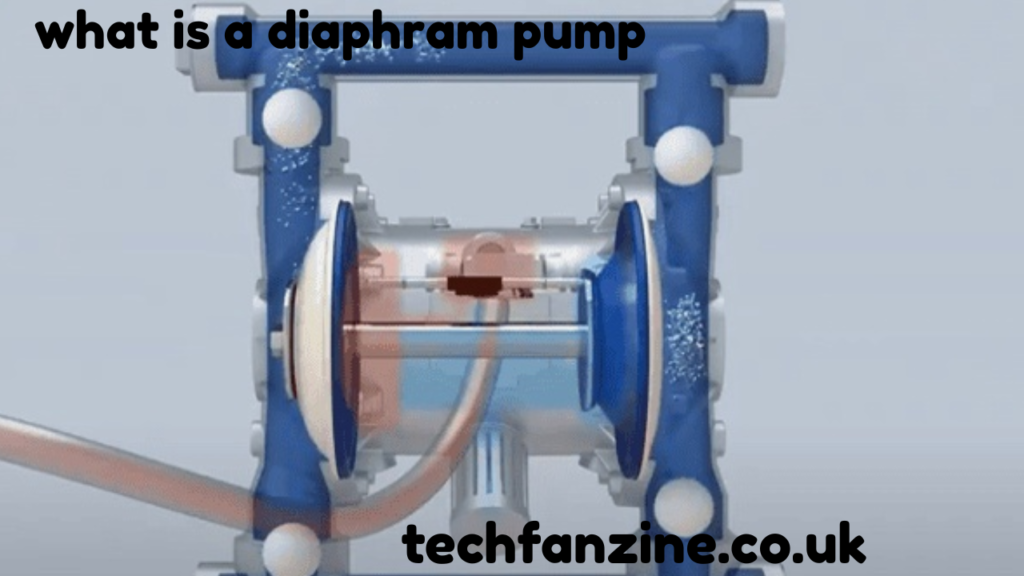

How Does a Diaphragm Pump Work?

The operation of a diaphragm pump is simple yet highly effective. The pump works using a diaphragm that moves back and forth inside a chamber. Here is a step-by-step explanation of what is a diaphragm pump operation:

1. Suction Stroke: When the diaphragm moves away from the pump chamber, it creates a vacuum that draws the liquid into the chamber through an inlet check valve.
2. Discharge Stroke: As the diaphragm moves back toward the chamber, it pushes the fluid out through an outlet check valve.
3. Valve Operation: The inlet and outlet check valves ensure that fluid moves in only one direction, preventing backflow.

This back-and-forth motion can be driven by air, hydraulic fluid, or mechanical action depending on the type of diaphragm pump. The simplicity of the mechanism makes what is a diaphragm pump easy to maintain and highly reliable for continuous operation.

Types of Diaphragm Pumps

To fully understand what is a diaphragm pump, it is essential to know the different types available in the market. The main types include:

1. Air-Operated Diaphragm Pumps (AODD)

Air-operated diaphragm pumps are powered by compressed air. These pumps are extremely versatile and are used in industries where electricity may not be feasible or safe. They can handle slurries, chemicals, and abrasive fluids effectively.

2. Mechanically Driven Diaphragm Pumps

Mechanically driven diaphragm pumps use a crankshaft or lever mechanism to move the diaphragm. They are more efficient in continuous operations and are suitable for precise fluid handling applications.

3. Hydraulic Diaphragm Pumps

Hydraulic diaphragm pumps use hydraulic fluid to move the diaphragm, providing higher pressure capabilities. These pumps are often used in industrial applications requiring strong suction and high-pressure output.

Understanding what is a diaphragm pump in these variations helps in selecting the correct type for specific industrial needs.

Advantages of a Diaphragm Pump

Diaphragm pumps are widely preferred due to their numerous advantages. Here are some key benefits that explain why industries rely on them:

• Ability to Handle Viscous and Abrasive Fluids: Unlike other pumps, diaphragm pumps can handle thick, sludgy, or particle-laden liquids.
• Self-Priming: They can create a vacuum that draws liquid into the pump without external priming.
• Leak-Free Operation: The diaphragm acts as a barrier between the fluid and the mechanical components, reducing leakage risks.
• Versatility: Can operate in dry conditions or with aggressive chemicals without damage.
• Portable and Easy to Maintain: Air-operated diaphragm pumps, in particular, are lightweight and can be moved easily for different tasks.

These advantages make what is a diaphragm pump not just a technical solution but a practical tool for diverse industrial operations.

Applications of Diaphragm Pumps

The applications of diaphragm pumps are extensive, covering multiple industries. Understanding what is a diaphragm pump is incomplete without considering its real-world uses:

• Chemical Industry: Pumping acids, alkalis, and corrosive chemicals safely.
• Food and Beverage: Handling food products, syrups, and beverages without contamination.
• Pharmaceutical Industry: Precise dosing of fluids and maintaining hygiene standards.
• Water Treatment: Handling sludge, slurry, and wastewater efficiently.
• Mining and Construction: Moving abrasive slurries and thick fluids in harsh environments.

These applications highlight the flexibility and durability of diaphragm pumps in both industrial and commercial settings.

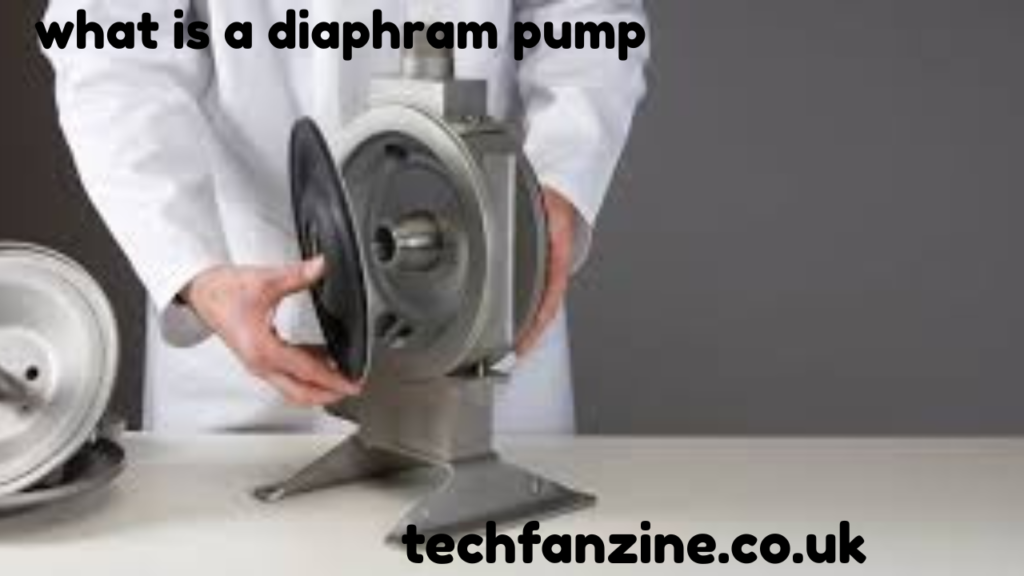

Maintenance and Troubleshooting

Maintaining a diaphragm pump ensures a long service life and consistent performance. Here are key maintenance points to consider:

• Regular Inspection: Check the diaphragm, valves, and seals for wear and tear.
• Replace Worn Components: The diaphragm material can degrade over time, especially with aggressive fluids.
• Clean the Pump: Prevent clogging by cleaning the pump chamber and valves regularly.
• Check Air Supply: For air-operated pumps, ensure a clean and regulated air supply.

Understanding what is a diaphragm pump also includes knowing how to troubleshoot common problems like reduced flow, air leaks, or unusual noise. Timely maintenance keeps the pump running efficiently and safely.

Conclusion

In summary, what is a diaphragm pump is a highly versatile and reliable positive displacement pump that operates through the flexing of a diaphragm. Its ability to handle a wide variety of fluids, from corrosive chemicals to viscous slurries, makes it indispensable across multiple industries. From air-operated models to hydraulic and mechanically driven types, diaphragm pumps offer unique advantages such as self-priming, leak-free operation, and easy maintenance. By understanding what is a diaphragm pump, industries can select the right type, optimize performance, and ensure safety in fluid handling operations.
